Pre-War Fireball Story

by A-J Historian Frank Macy

The Fireball Club of Portland, Oregon with it's founder Jim Walker in 1940

This photo of Jim Walker and the new Portland Fireball Club was taken at the club's flying field which was the Portland International Speedway, July 1940. Count the Fireballs. That was the only plane on the market that was a U-Control airplane. None of the other manufacturers were yet there. Stanzel Sharks were available but you had to completely build them from a kit and they were not U-Control, but Stanzel G-Line which didn't offer reliable control. The Fireball offered a pre-shaped fuselage, just sand it and paint it and simple sheeted wing, and tail feathers. They said you could build it and fly it in six hours.

Jim Walker patented the U-Control system of control line flying in 1940.
Jim Walker filed the U-Control system patent in 1940. Note the early ignition speed control as a third line.

The summer of 1940 brings to mind many events from the pages of history. The most obvious was the daily news of a world preparing for war, with some nations already at battle. U.S. involvement at the time was simply that of supplier to its allies. This of course would change in another 16 months with the attack on Pearl Harbor. Another event occurred in the summer of 1940 which was much more pleasant, but which few people today realize. A man by the name of Jim Walker stunned the modeling world with the introduction of U-Control. In his usual dramatic manner, Jim disrupted the National Model Airplane meet in Chicago by flying his new Fireball (with U-Control) powered by a new Ohlsson .23 engine. Officials of the meet were anything but pleased with what they considered a rude disruption of the event. On the other hand, contestants and spectators quickly gathered around to watch this fantastic flight demonstration of a gas powered model airplane flying on long lines in a big circle. The crowd was awestruck, and Jim was delighted.

This was the first time many of them had actually witnessed model flight controlled by lines. Except for early experiments in Radio Control, all flying was categorized as Free Flight. Many were impressed and anxious to try this new "U-Control" system which looked so easy and obviously a lot of fun. A few were skeptical though, convinced that it would be as exciting as flying a brick on a string. Time would tell.

American Junior Aircraft Fireball is announced in Model Airplane News 1940
First full page ad in Model Airplane News - September 1940.
Click for larger image.

Following the NATS, a full page ad appeared in the Sept. 1940 issue of Model Airplane News introducing the new A-J Fireball with U-Control. The promise was that "You can now fly anywhere, even in your own back yard," performing stunts, loops, hedge-hopping, etc. In addition, the ad
said you could "build it and fly it in 6 hours." The kit featured an entirely new concept in model construction with a fully carved and shaped balsa fuselage, wing sheet covering of balsa cut to shape, and all parts ready for immediate assembly. The American Junior Aircraft factory was soon
swamped with orders, and the world's first prefabricated "U-Control" kit was on its way to making history.

Although it was December of 1940 before Jim applied for his patent for U-Control with the U.S. Patent Office, his experimentation with Control Line flight began many years before. The following is from "U-Control History and Hints," by N.E. "Jim" Walker: "The history of U-Control dates back to the '20s when I demonstrated rubber powered models in department stores. Due to restrictions against
Free Flight indoors, I developed a tether flight that successfully demonstrated the take off and climbing ability of a model by attaching a line to the wing in the correct position to assure lateral and longitudinal
stability. With the advent of gasoline powered flight in the early '30s, I experimented with many types of control and became convinced that the average modeler would like to fly his model from the ground in a limited area. Also, the fun of running the motor continuously would have very strong appeal. Some models used a single line, others as many as five lines."

For historical clarification, it should be pointed out that the term"Control-Line" is generic. The names "G-Line, Mono-Line, Flight-Control and U-Control, etc.," are different trademarked systems in the Control-Line category.

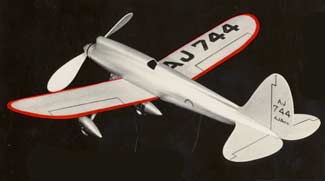

The American Junior A-J 744 was the inspiration for the original Fireball U-Control model by Jim Walker
A-J 744 Racer influenced the Fireball design - 1937

Of the many different models Jim designed and tested in his control line experiments, the one which became the inspiration for the Fireball design was the A-J 744 Racer of 1931. It looked like a mixture of DeHaviland, Curtiss and Howard "Pete" all thrown together. With its beautifully formed all balsa monococque fuselage, one could also detect the influence of Lockheed. The 744 was much too small for gas powered flight, but by enlarging the wing to 36 inches sufficient area for flight was achieved. The wing construction for the time was quite unique, consisting of top and bottom 1/16 inch balsa sheets cut to shape. The bottom sheet was printed for rib locations and edge bevel line. After ribs were glued in place and bottom edge bevelled, the top sheet was glued on. Wing halves were then joined together at proper dihedral and the joint reinforced with a 3 inch band of crinoline generously saturated with glue. This formed a very light but extremely strong wing, quickly.

The major developmental problem was the fuselage. Jim as a pioneer in the Ready-To-Fly concept and wanted to apply that technology to his new Control Line model. The standard stick and silk (or tissue) method was too slow and required great skill and patience of the builder. The other consideration being that the fuselage was oval in shape and had many curves which would make it extremely difficult to build in the traditional way. After much experimentation, the idea of a full carved fuselage emerged. Test models were carved by hand, assembled and flown in 1937. It was soon discovered that the most logical answer was a two piece horizontally split fuselage consisting of an upper and lower shell. This allowed a midwing configuration, plus the advantage of engine, accessories and the U-Control mechanism mounted in the lower shell. The top piece merely went along for the ride. The whole airplane was designed in such a way that it would simply pop apart upon impact, and quickly reassembled with rubber bands, with little or no damage whatsoever.

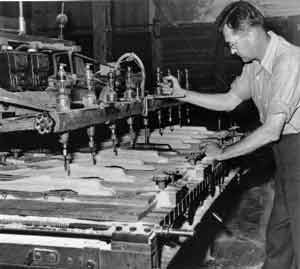

Bill Walker at the Fireball router carving machine, pre-war.

With the design of the airplane finalized, the Company purchased a large 8 spindle carving machine from a furniture manufacturer. Aluminum master plugs were cast for the exterior and interior shape of the fuselage. Carving eight at a time required sixteen minutes, a total of sixty four minutes to complete eight rough carved fuselage sets. The airplane was produced in batches of 96, which required 2 two ton trucks per day to haul the scrap balsa away.

When the new Ohisson .23 came on the market in 1938, Jim installed one in the (now named) FIREBALL. It was love at first flight, and quickly became known as THE engine for the FIREBALL. It appeared in all the early ads and box labels, and was the engine used when the airplane was introduced at the NATS in Chicago, 1940. The assembly instructions gave details on how to vary engine speed, using a third line to retard or advance the ignition timer. The purpose of this was to allow smooth, realistic take-off and landing. The power output was sufficient to allow the new thrill of controlled loops, zooms, and hedge-hopping. Anyone who had guts enough to perform any of those feats, particularly a loop, became an instant hero to observers. Can you imagine what the crowd thought as they watched Jim perform 27 consecutive loops? The thrill of U-Control flight with the FIREBALL challenged the imagination of thousands, and sold alot of FIREBALL Kits and Ohlsson .23 engines.

Many new U-Control clubs started forming around the country, and soon some of the guys were modifying their FIREBALLS to various configurations for racing and speed. An Ohisson 60, a Super Cyclone or Bunch Tiger Aero soon took the FIREBALL to the blazing speeds of 50, 60, even 70 MPH. Thus was born not only stunt, but speed and racing with U-Control. By this time in history, other things in world events were also heating up. It was almost December of 1941.

As America entered World War n the nation was shocked into the reality of sacrifice. Almost all vital necessities and goods became rationed, or war priority goods unavailable to the public. The Model Hobby Industry was also severely affected as balsa wood, metals, paint and petroleum products
were classified as "War Priority" items. Model Kit Manufacturers changed to cardboard, paper and hardwood veneer substitutes for balsa. Model engines became unavailable as their shop facilities were utilized to produce war products.

American Junior Aircraft Company however was one of the few model manufacturing firms that continued to produce balsa airplanes with original metal parts as needed. The reason was simple enough.. .A-J now produced airplanes for the War Department. For example, the Folding Wing Interceptor became a catapult launched Target Drone for machine gun practice. Hundreds of thousands were produced for this purpose. The FIREBALL also became a free flying Target Drone for the NAVY. Painted in bright International Orange, they were launched from ships at sea and shot out of the air by machine guns and 20mm guns. In addition, American Junior manufactured Radio Controlled Target Drones with 14 foot wing span, powered by twin cylinder Righter engine of 6 H.P. with contra-rotating props. During the war, production needs often demanded 3 shifts per day at the factory.

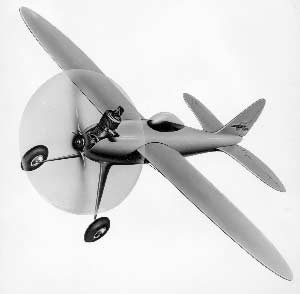

The post-war Fireball by American Junior Aircraft company shows a modified fuselage with bubble canopyWhen the war ended, a new FIREBALL had been designed and was ready to go. It was called the FIREBALL "Advancer," the first of the "Bubble Tops." In truth, the only thing that changed was the fuselage top and the rudder. The post-war FIREBALL is the subject of a future article.

© 1990 Frank D. Macy
