Ted Browning builds the Folding Wing Interceptor

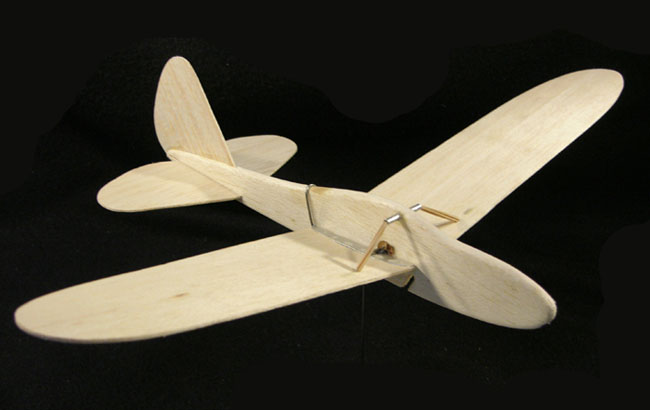

Ted Browning folding wing Interceptor
Ted Browning has built some beautiful "404" Interceptor replicas and shares the production process he created to produce them.
Ted Browning with his folding wing gliders
Here is Ted Browning with a squadron of his folding wing Interceptors from 2011
Routing wings for the folding wing glider

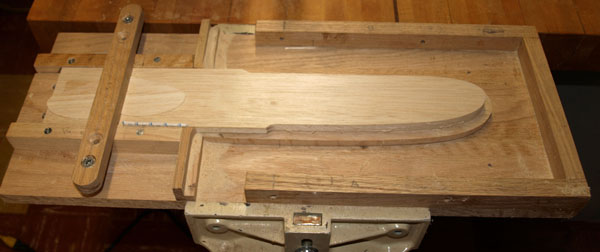

Jig and template for routing the wings

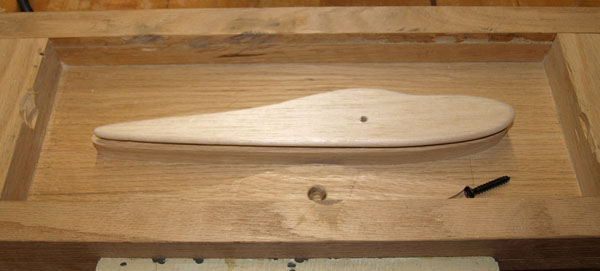

Finished routed fuselage for Interceptor
Routing is complete on this fuselage
Horizontal stabilizer slot cut in Interceptor fuselage

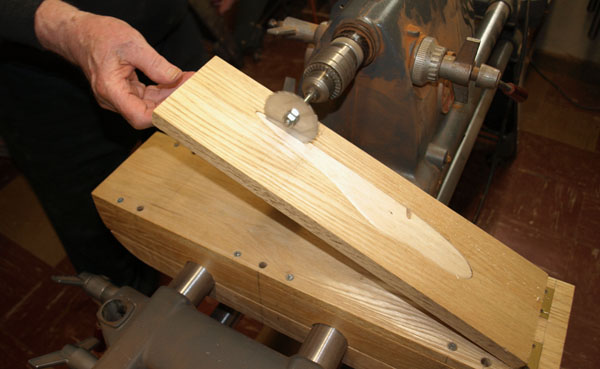

Stabilizer slot is cut bt tilting fuselage into blade.
404 Interceptor hardware made by Ted Browning

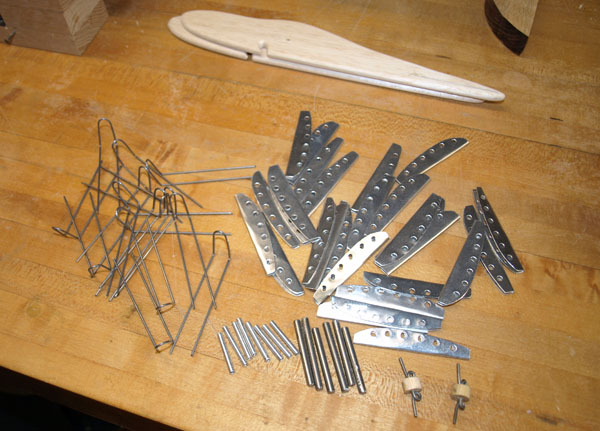

Ted also produced all the metal parts needed to finish the model.

Cutting sheet metal for wing support
punching hols in wing support
Cutting sheet aluminum wing support

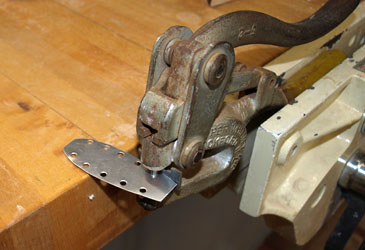

Hole punch cuts out the glue holes

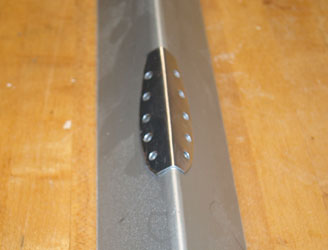

bending sheet metl for 404 Interceotor wing

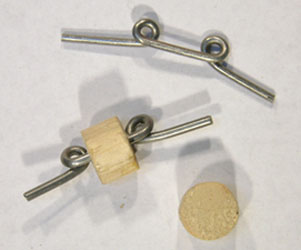

Wire pivot pin made by Ted Browning for replica Interceptor
Part is bent on angle stock
Wire wing pivot pin replicates original patent design

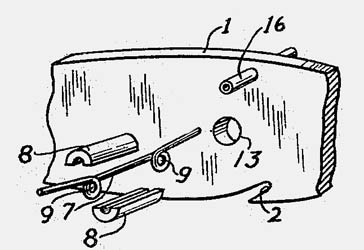

Folding wing patent detail

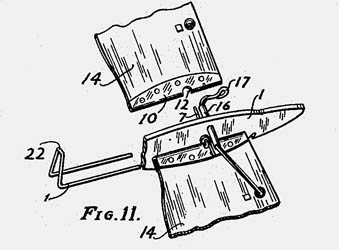

Folding wing patent shows wire pivot pin
Original Jim Walker patent from 1939
Jim Walker used same wire pivot pin in patent

This page is still under construction and was built rather quickly. Ted Browning sent me many more production
photos and information. I will add more of his story on building the folding wing glider in the near future.
